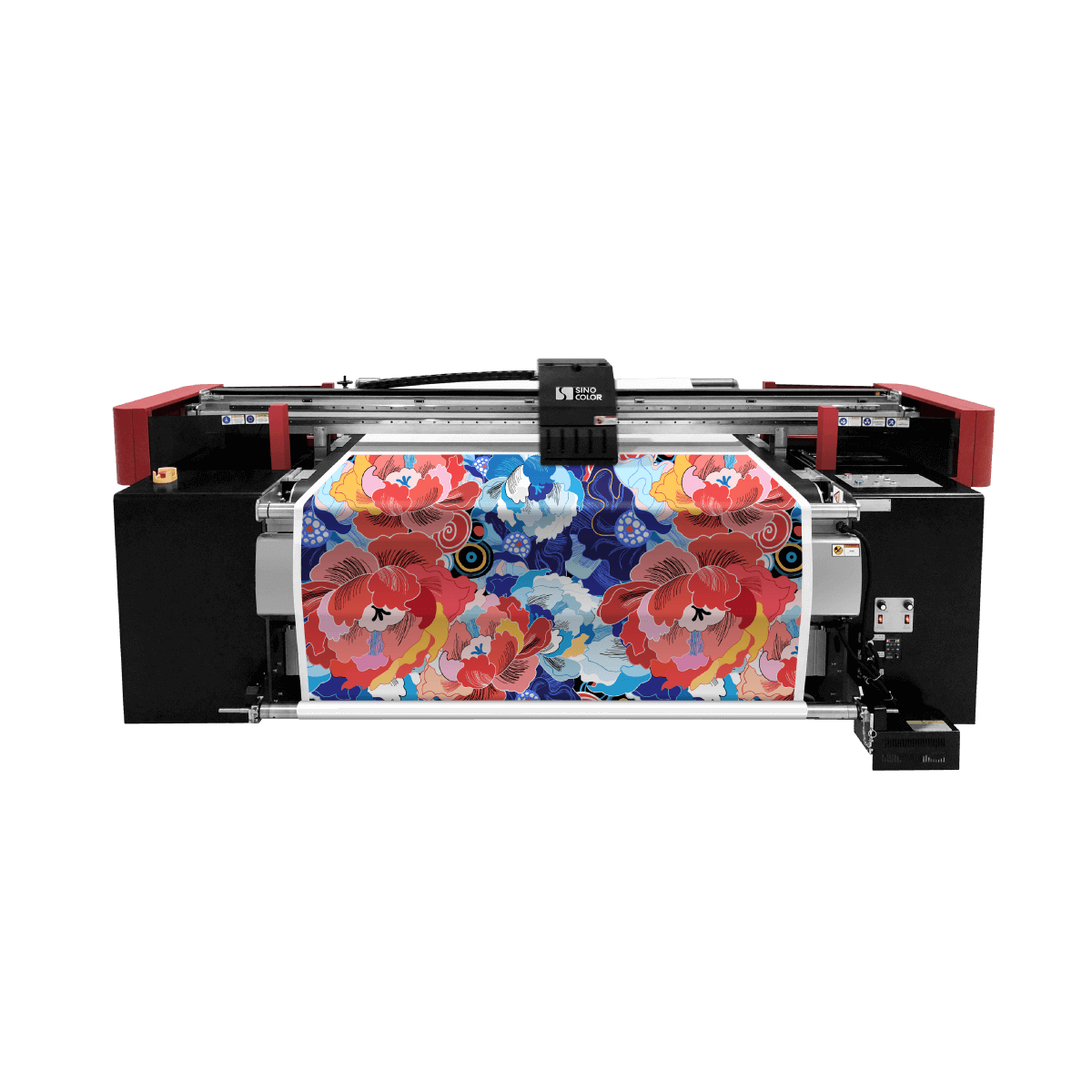

Belt Fabric Printer BFP-740

  • Print Head : 2/4 ×Epson i3200 Printheads
  • Print Resolution : 2400 dpi Max
  • Max Printing Width : 1.8m or 2.5m or 3.2m
  • Print Speed : Up to 120 sqm/h
  • Media Types : Cotton, Viscose, Polyester, Polyamide, Silk, Wool
Request For Quote Contact us View Details
Learn More

Related Video

SinoColor Belt Fabric Printer BFP-740S

Request For Quote
For the traditional screen printing, complicate pre-treating and after-treating are required. While with the belt fabric printer, which can work with disperse ink, pigment ink, acid ink and reactive ink, then print directly onto fabric easily. Especially for pigment ink, need only three steps: Printing, and heat fixation only. This digital printing make customize or DIY printing to be possible. And the belt type media feeding system, enable the printing of textile with different elasticity. Achieve maximum business potential.
BFP-740

Download PDF Brochure

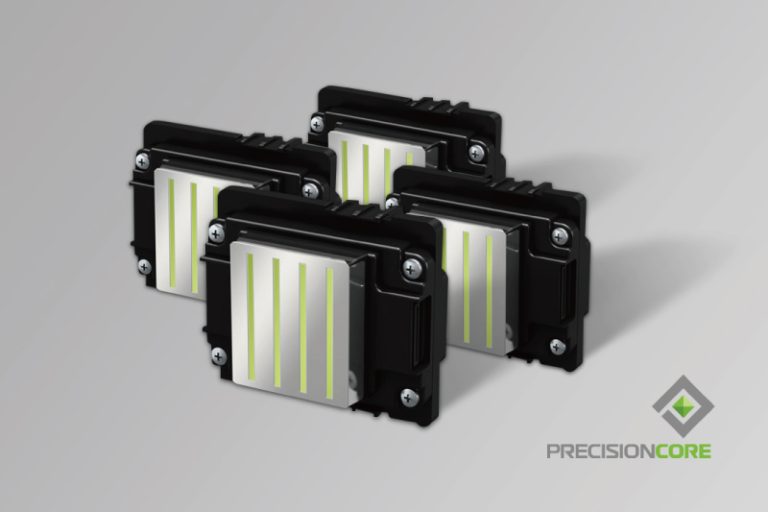

Epson Official Supplied i3200 Heads

Equipped with 2 or 4 pcs Epson official supplied i3200 printheads. High productivity choice.

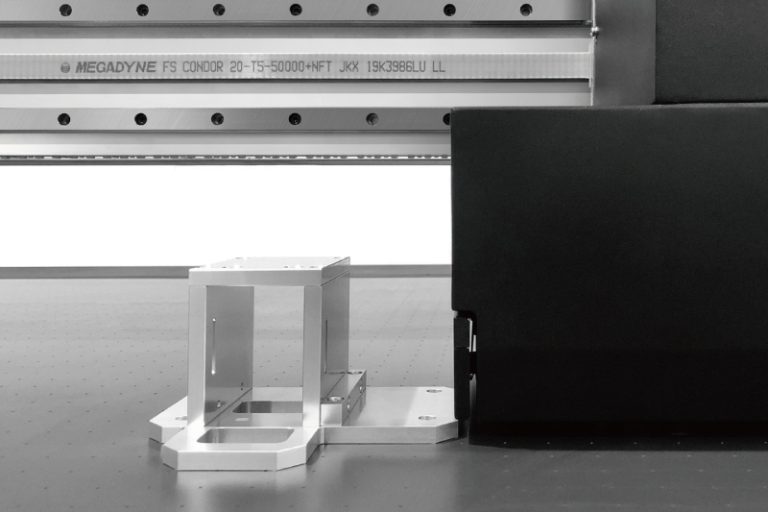

Anti-collision System

Printer will automatically stop when the printhead carriage hit any unexpected object during working, and system memory function support continuing printing from the interruption part, reduce the material waste.

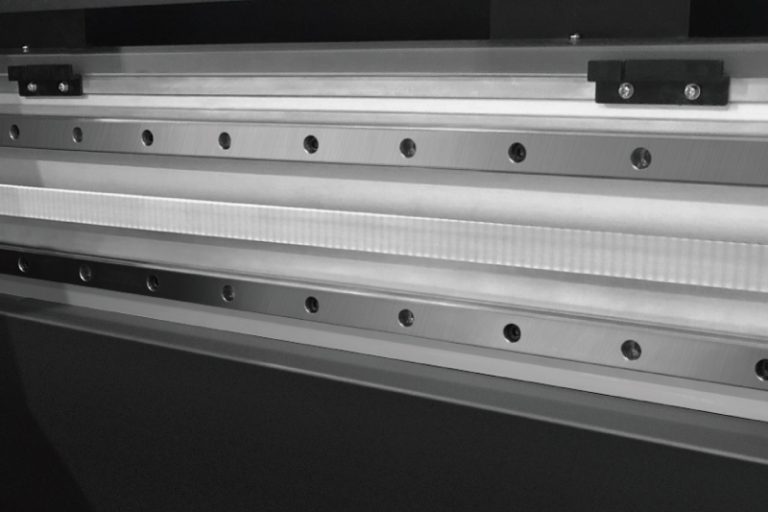

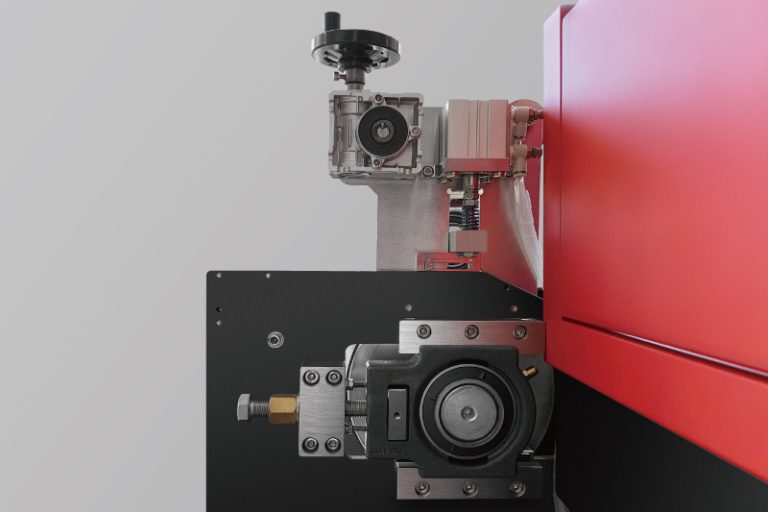

Dual Guide Rail

Dual guide rail configuration, guarantee the stability of long time running.

Dual guide rail configuration, guarantee the stability of long time running.

Automatically adjust the possible error of moving direction and tightness after long-term running.

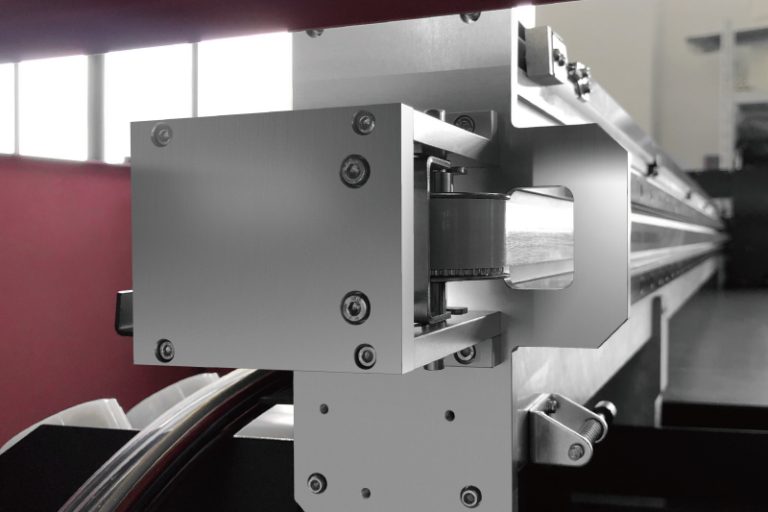

Elaborate Processing Component

Elaborate Processing of Printer Carriage Component,Guarantee the high precision output.

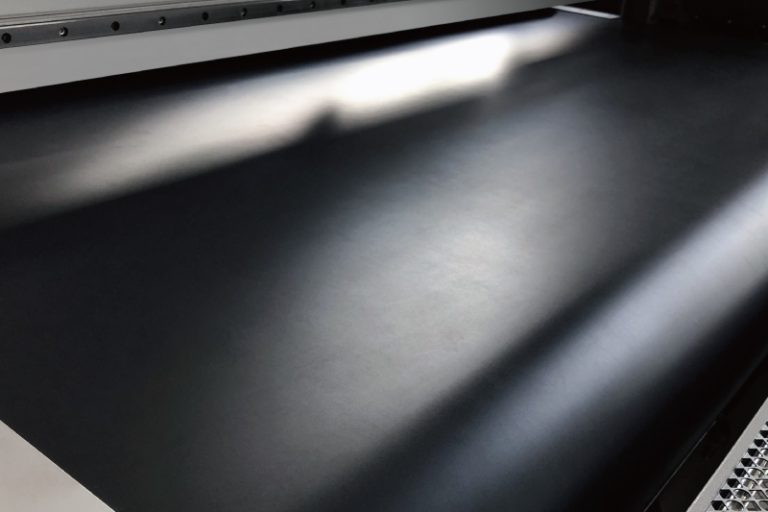

High Grade Material Made Belt

Effectively protect the fabric.

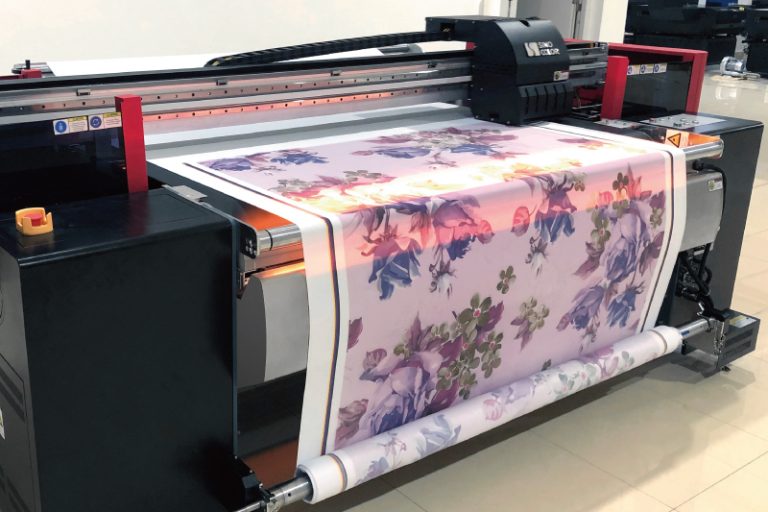

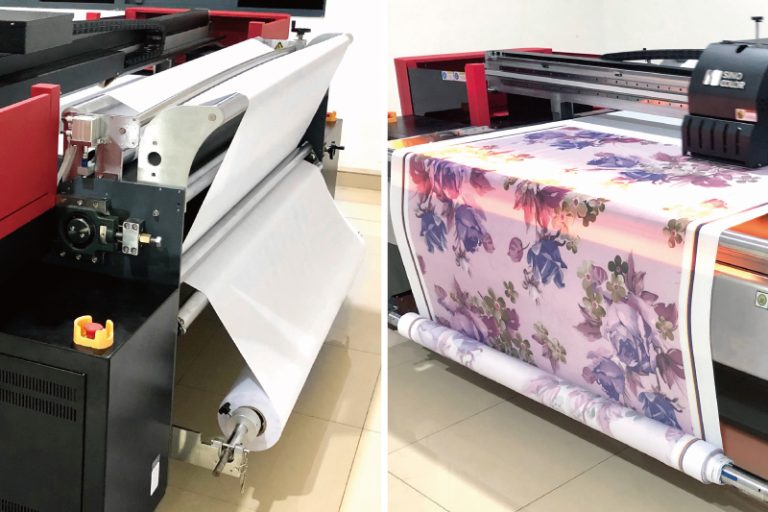

Tension Media Feeding And Take-up System

Apply to material with different elasticity

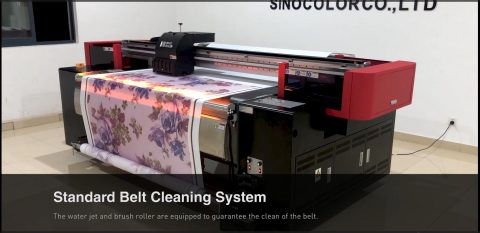

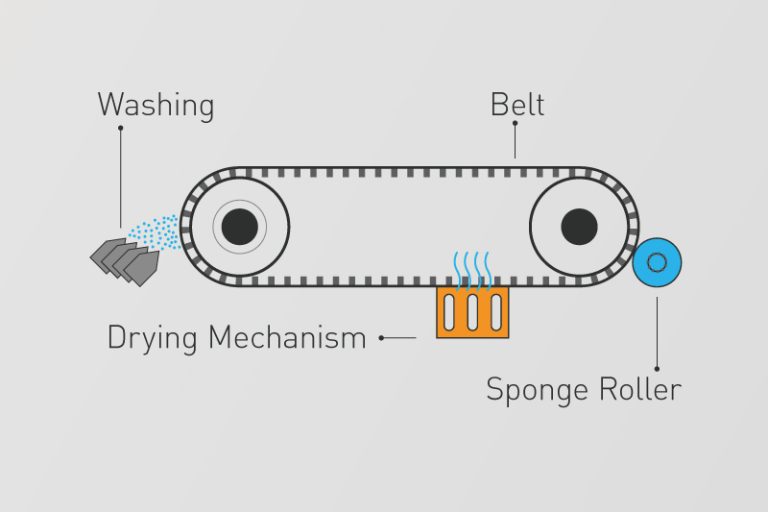

Standard Belt Cleaning System

The water jet and brush roller are equipped to guarantee the cleaning of the belt

Super Wide Heating Device

Guarantee the drying of ink on fast speed printing mode. Get ready for after-treatment

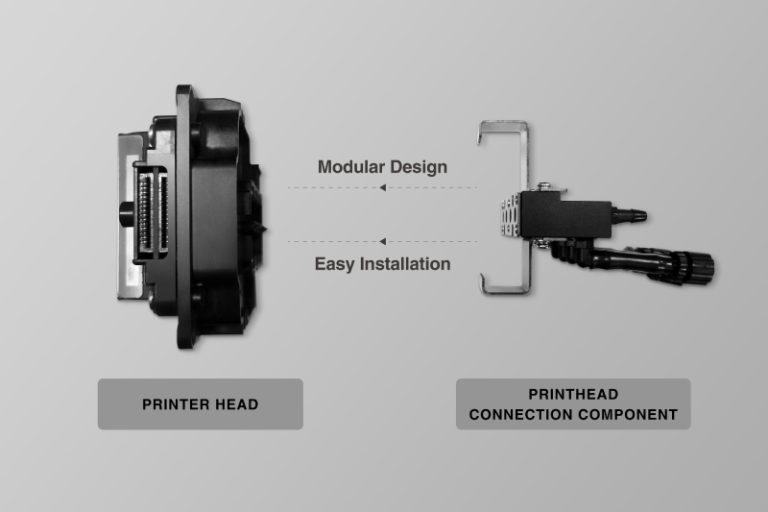

Modular Printhead Connecting Component

Modular component design for the connection of printhead and ink supply system, makes the printhead installation, cleaning and replacing to be quite convenient.

Modular Printhead Connecting Component

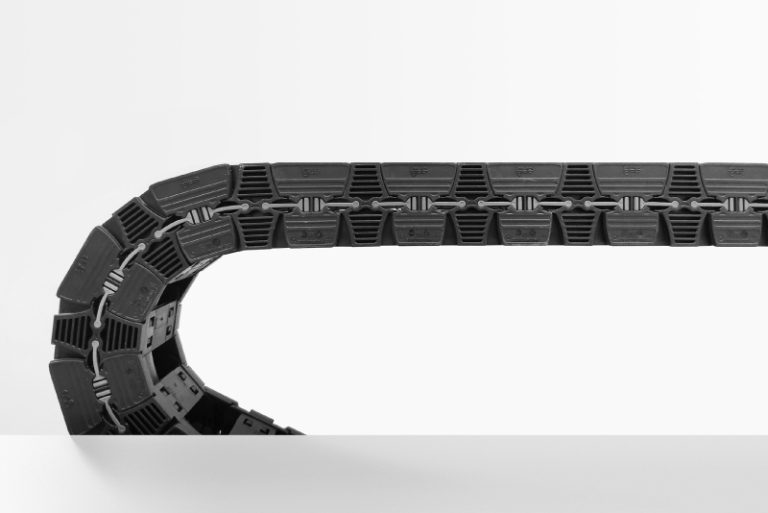

High Grade Two-layer Germany Igus Drag Chain. Effectively protect ink tube and cables.

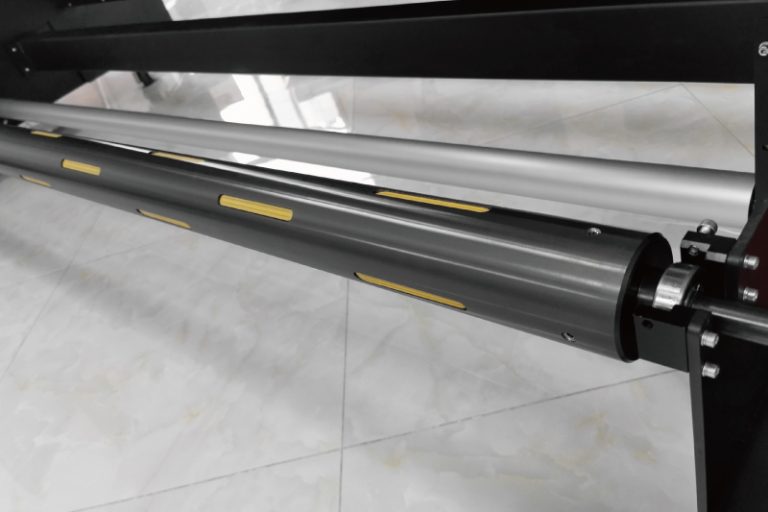

Heavy Duty Roller

Heavy duty material roller, load-bearing can reach maximum 180KG. And it can adapt to different diameter material by adjusting the air pressure inside the roller.

Model NO.BFP-740
 PrintheadType2 x Epson i32004 x Epson i3200
Nozzles3200 Nozzles Per Head
Max Material Thickness3cm
Max Printing Width1.8m (2.5m &3.2m available)
Resolution (dpi)2400 dpi
Media TypesCotton, Viscose, Polyester, Polyamide, Silk, Wool
InkTypeDisperse/ Pigment/ Acid/ Reactive Ink
ColorC M Y K / C M Y K White
Droplet1.5 – 21pl Variable
SpeedDraft64 sqm/h120 sqm/h
Production32 sqm/h60 sqm/h
High Quality21 sqm/h40 sqm/h
Feeding & Take-upAutomatic Tension Type Media Feeding & Take-up System (Standard)
Head Cleaning SystemAutomatic Cleaning, Anti-Clogging Flash Function & Capping System
Belt Cleaning SystemAuto Water Jet and Brush Roller
Heating SystemIR Heater & Front Ultra-wide Heating Device
EnvironmentTemperature: 20-28°C, Humidity: 40-60%
Rip SoftwareMaintop (Standard), PhotoPrint (Optional)
Control SoftwareSinoColor Print Console
InterfaceUSB 3.0
Operation SystemWindows 7 / XP/ 10
PowerAC 110 / 220V, 50 / 60Hz, 2000W

Application
