Download PDF Brochure
SinoColor System. Much more professional and more stable than desktop modified printer. Control the color freely.

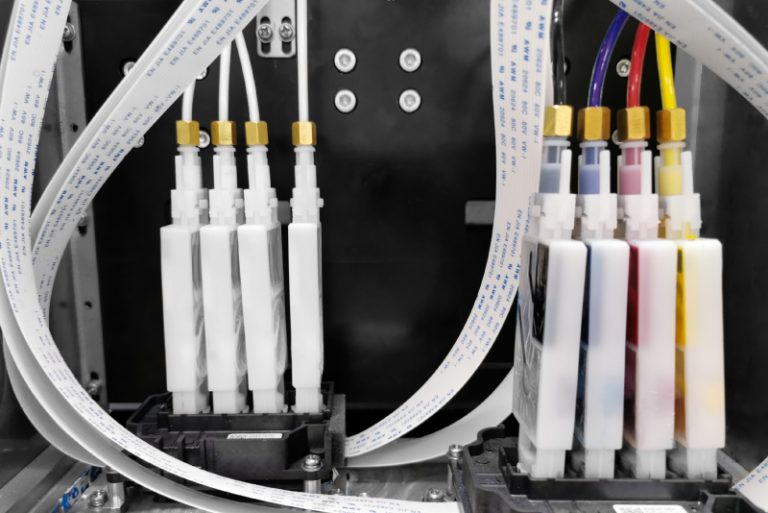

Dual Epson Heads equipped. Achieve real fast speed printing.

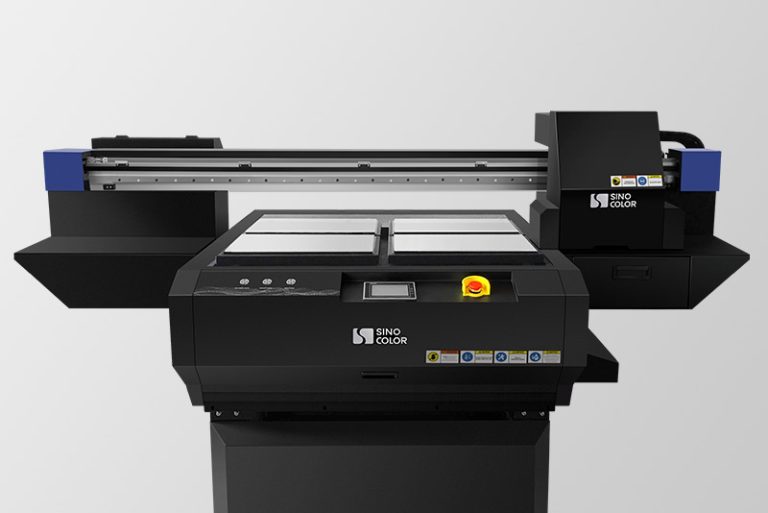

Build with four platforms. Effectively improve the work efficiency.

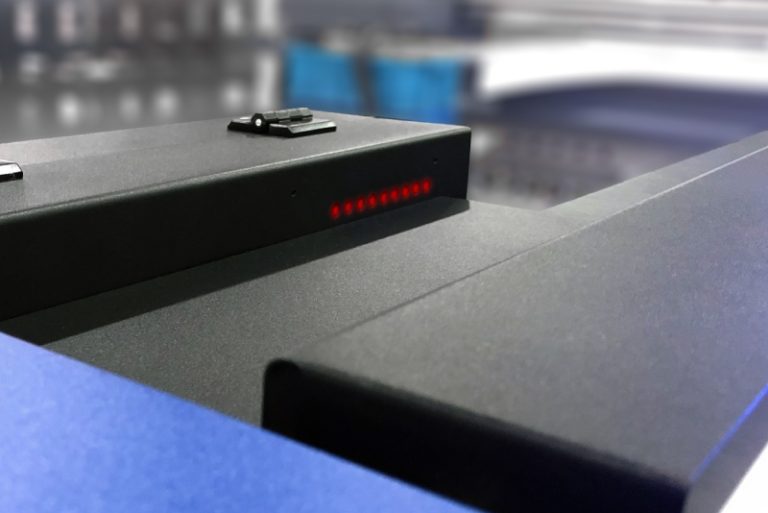

Anti-collision system is equipped to to protect the printhead and carriage all the time.

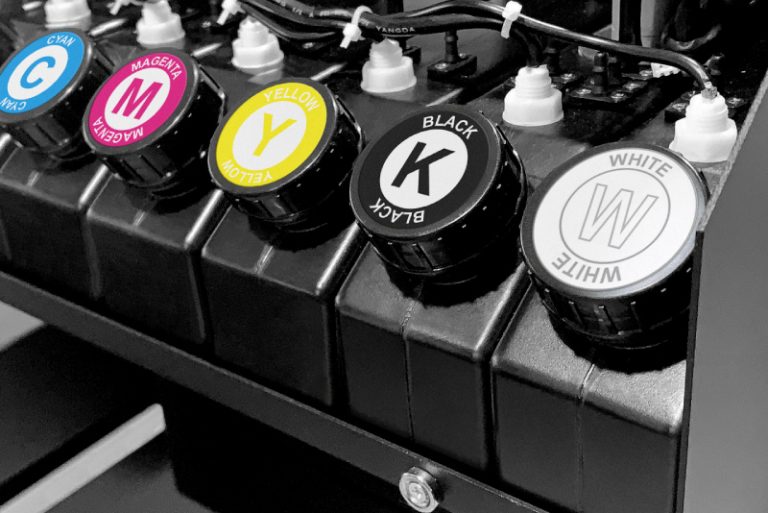

Lack ink alarm system is equipped. Give LED light signal remainding operator to fill the ink,no interruption during printing job any more.
White ink stir system is equipped. Decrease the problems caused by white ink precipitation.

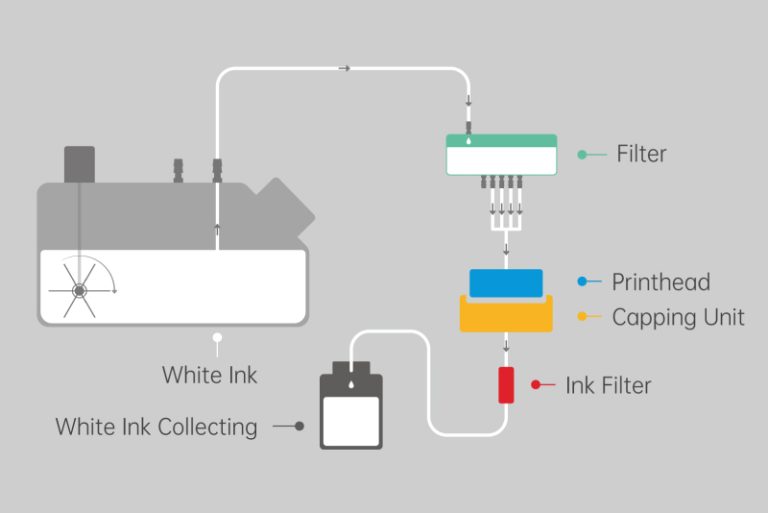

White ink collecting and reusing system is equipped. Collecting and filtering the ink from capping unit, then reusing. Greatly reduce the waste of white ink.
Triangular Aluminum Moulding Stracture, increase machine stability and extend machine durability.

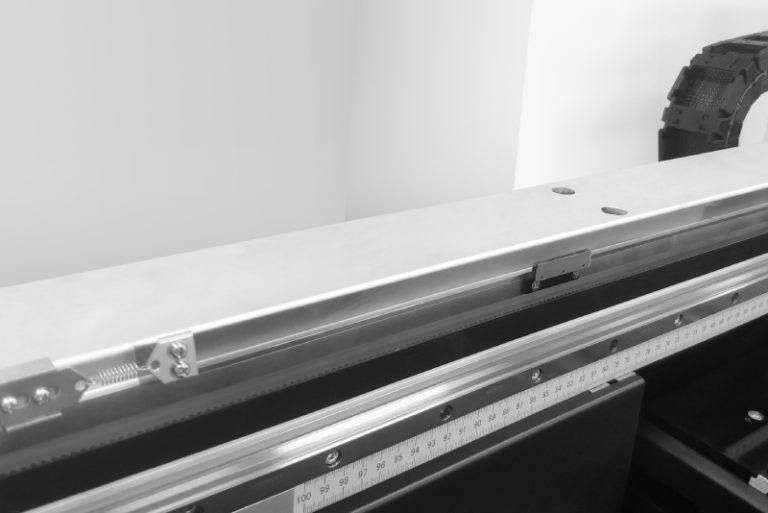

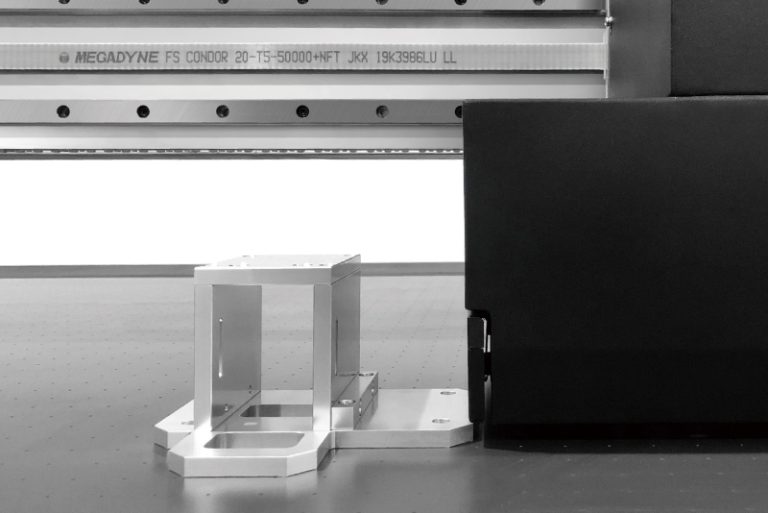

One-time molding aluminum beam that ensure the high accuracy of each carriage movement.

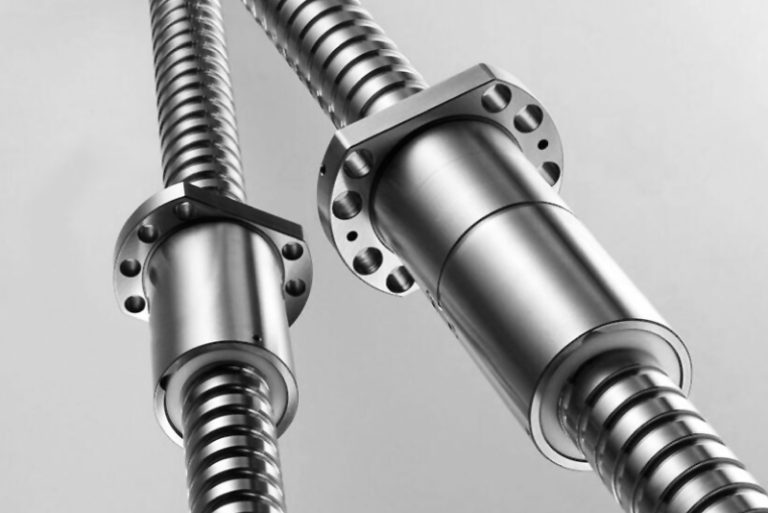

Screw rod type transmission for the Y axis. Guarantee the high precision of each printing.

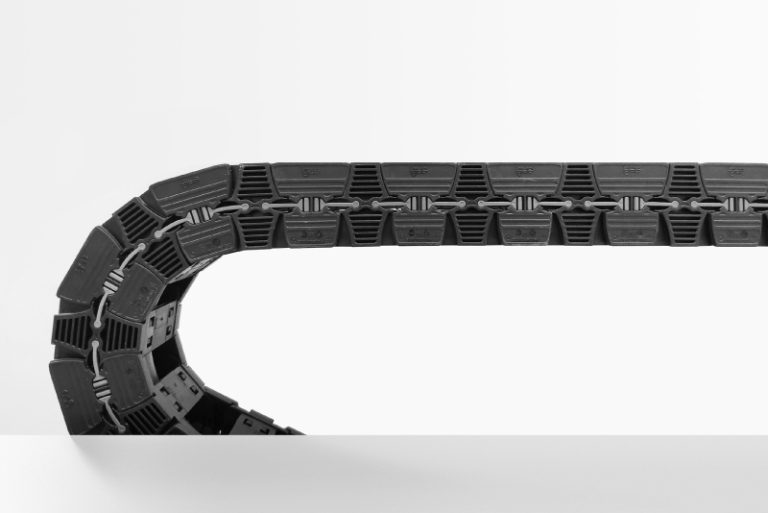

High grade two-layer Germany Igus drag chain. effectively protect ink tube and cables.

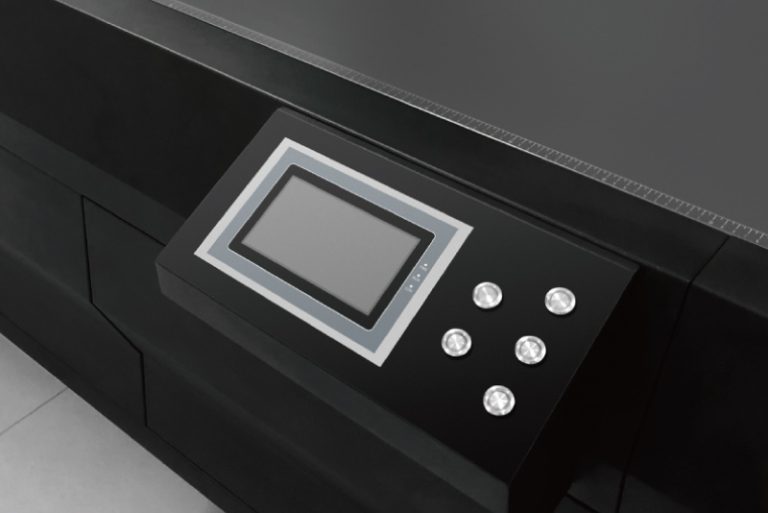

Well-desighed touch screen. Easily adjust platform position and do the basic setting.

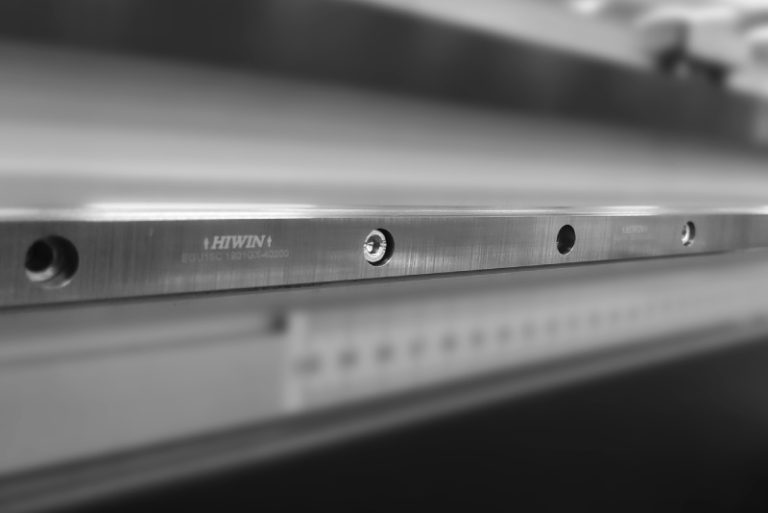

High quality branded guide rail, build for long time use.

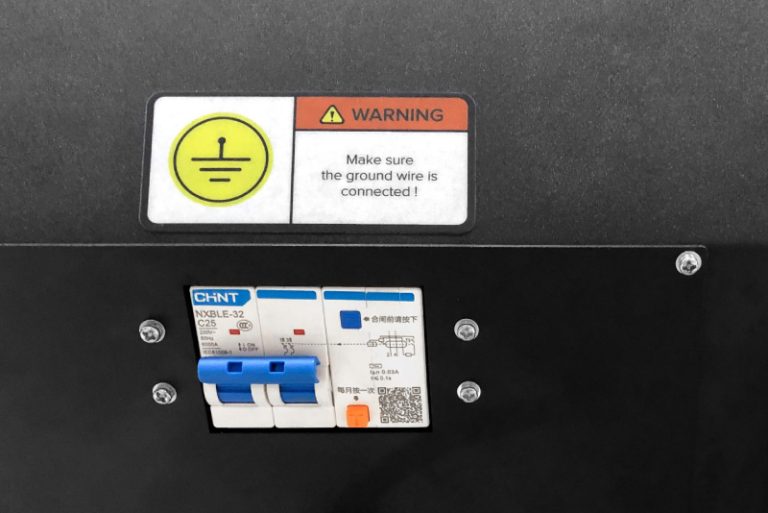

Branded circuit breaker to protect the safety of the whole electronic system.

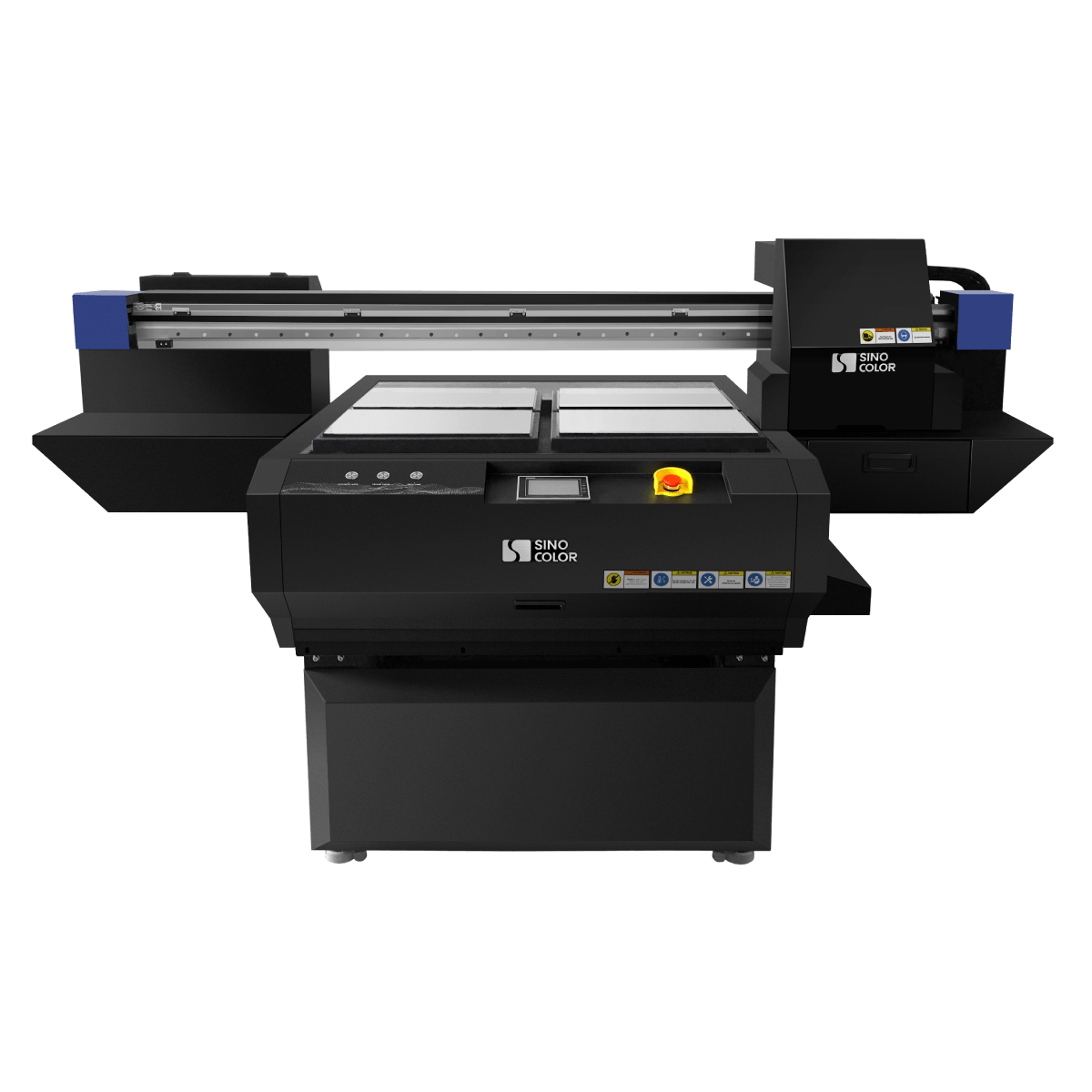

Model No. | TP-900D | |
---|---|---|
Printhead | 2 x Epson i1600 Printheads ( (i3200 is available) | |
Resolution | 2400dpi | |
Max Speed | 1 minutes for one T-shirt | |
Print Head Height | 5 cm Max | |
Printing Size | 4 pcs 30 × 40cm pallets | |
Print Direction | Intelligence double side | |
Print Method | micro piezo print technology, intelligence drops transformation technology | |
Height Adjust | Electric | |
Distance of Print Head Printing | 1-3 mm (1 mm is the best) | |
Ink Color | 4 colors (CMYK) or 5 colors (CMYK,W) | |
Ink Supply System | CISS | |
Ink Consumption | 15-20 ml/ squre meter | |
Min Ink Drop Size | < 1.5 PL | |
Interface | USB 3.0 | |
Rip Software | Maintop (Standard) / FlexiPRINT (Optional) | |
Working Environment | Temperature 18-30 Celsius, Humidity 30-70 RH, Clean room, Low dust, Less sun light | |
Power | AC 110/220 V, 50 Hz/60 Hz | |
Size & Weight | Machine | L2150 × W1350 × H1320 mm |
Packing | L2240 × W1450 × H1070 mm |
